The premium quality 1 1/2" focal length lens for Trotec machines is commonly used for high resolution engraving, as well as printing small fonts and very fine detailed works. In comparison to the most commonly used lens, the two inch lens, the 1 1/2" lens is about 40% smaller in size. Another use is for cutting very thin materials, less than a sixteenth of an inch. The concentrated power of the smaller spot size (increased energy density) enables cutting of very thin metals, when paired with the smaller orifice nozzle. Note, that the 1 1/2" lens is not widely used for engraving because the focus range is very sensitive, and thus a slight change in height will significantly change the spot size. So, as materials and laser tables are subject to height variations, especially when the surface for engraving is larger, the applications for the 1 1/2" lens tend to be dimensionally smaller works.
1.5" Focus Lens with Holder for Trotec Laser Engraving Machines by Mahoney. Features Premium Grade Focus Lens.
Low price, good quality. Why pay excessive prices? High quality machined aluminum base. Premium grade lens. Save a bundle.
Fits any Trotec CO2 Laser Engraver including Trotec Speedy 300, Trotec Speedy 400, Speedy 360, and Rayjet 300. Add a quality lens to your Trotec Laser Engraver today.
Features the premium grade focus lens. Great for most laser engraving work.
See our other listings for the premium grade focus lens with holders.
Includes both the red anodized lens holder with lens attached.
OPTIONAL: Nozzles with three sizes of holes so that you can choose the best air stream for the best quality. Easy to change nozzles, great for higher quality. After you vary the nozzles you will quickly learn which colored nozzle to choose for the material/job at hand.
Fast installation. Simply remove the old lens/holder and insert this lens/holder. Nothing could be faster!

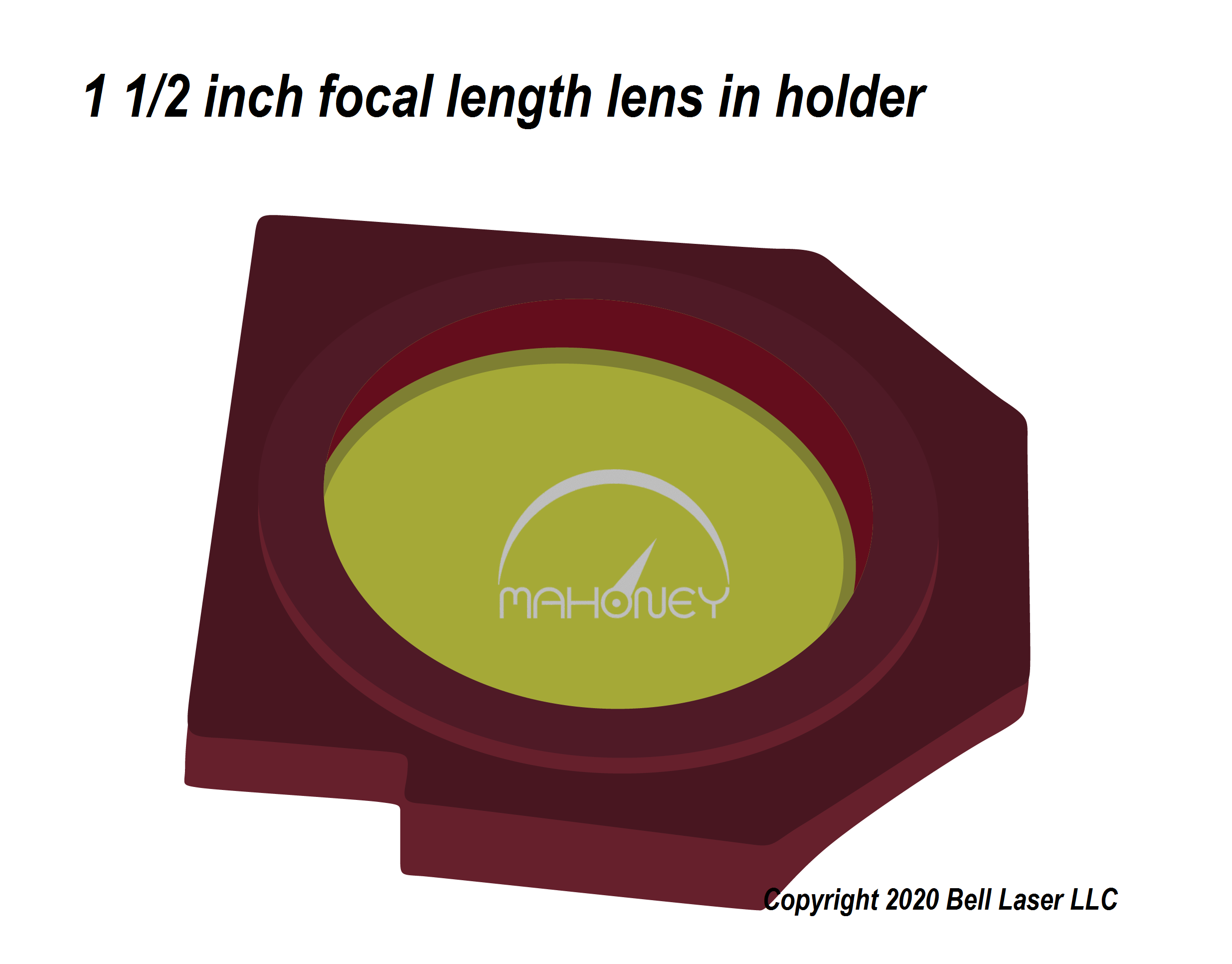

1.5" Premium-Grade Lens w/holder fits Trotec Speedy 300 Speedy 400
Brand Name Mahoney Packaged Weight 1.1 pounds Product Dimensions 0.8 x 0.1 x 0.8 inches Item Model Number MAH-TRO-LHD-PR-FL15 Shipping Costs
price varies, international shipping FEDEX/DHL typical.
Indepth Product Information
